LC-2 Digital Wideband O2 Sensor Kit - P3 (P3LC2WB)
(p3lc2wb)
LC-2 Digital Wideband O2 Sensor Kit - P3 (P3LC2WB)
(p3lc2wb)
- P3
- P3LC2WB
Details
- Product ID:
P3LC2WB
- Description:
Need to keep an eye on your Air/Fuel Ratio but your vehicle doesn't have a factory wideband? No problem!

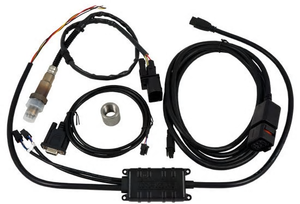

The Innovate Motorsports LC-2 wideband kit comes with everything you need to read AFR right on your Multi-Gauge. This is the easiest way to keep an eye on your AFR without adding clutter to your interior. The LC-2 utilizes 100% digital wideband air/fuel ratio technology. With it's patented award-winning DirectDigital™ signal processing technology, the LC-2 can show exactly how rich or lean an engine is running at any load. The LC-2’s self-calibrating circuitry also compensates for changes in temperature, altitude, and sensor condition. The LC-2 includes a digital input/output, 2 full-programmable analog outputs, and is ideal for applications such as dynamometers, data acquisition systems, standalone ECUs, and gauges.
KEY FEATURES
- Can be tied directly into P3 Multi-Gauge using analog input
- Patented DirectDigital™ Wideband Technology
- Wideband O² Compatible with ALL fuel types
- Ability to calibrate O² sensor for maximum accuracy
- Integrated dual-color status LED (Green/Red)
- *2-Configurable linear 0-5v analog outputs
- 8ft sensor cable
- Positive lock connectors for all connections
- Innovate MTS serial in/out
- Serial connection to your PC
- Real-time display data on screen and/or with powerful LogWorks software
*Two fully programmable linear analog outputs to connect to analog gauges, dyno computers, ECUs, piggyback controllers, and other devices with analog inputs.
DEFAULT OUTPUT CONFIGURATION
Analog Output 1- (Yellow wire) 0 volt = 7.35 AFR 5 volts = 22.39 AFR
Analog Output 2- (Brown wire) 1.1 volt = 14 AFR .1 volt = 15 AFR
With the provided LM Programmer software these analog outputs may also be configured by the user.
*Program Cable (Only needed for Datalogging and to change the Fuel Type Setting), Manual, LogWorks Software (Free Download).
Complete user guide and installation manual
SPECIFICATIONS
Power
Operating Voltage 9.8V to 16V DC Input Current, O² heater initial warm-up 2.0A nominal, 3A max Input Current, O² normal operation 0.8A nominal, 1.1A max Environmental
Operating ambient temperature 0° to 140° F (−17.78° to 60° C) Storage ambient temperature −40° to 185° F (−40° to 85° C) Water resistance Splash resistant, non-submersible Sensors
Compatible Types Bosch™ LSU4.2 & Bosch™ LSU4.9 Bosch™ Heater Control Digital PID via pump-cell impedance Measurements Lambda .5 to 8.0 Air/Fuel Ratio 7.35 to 117 (gasoline), Fuel Type Programmable Accuracy For Lambda Accurate to +/- .007 (.1 AFR) Response Time
Free Air to Lambda < 100 mS ( < 25 mS typical) Inputs Serial 1- Innovate MTS Compatible Outputs Analog 2- 0-5VDC, 10 bit resolution, programmable
Serial 1- Innovate MTS Compatible Communication Serial MTS (Innovate Modular Tuning System) compatible
California Proposition 65
WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov - Sale Price: $189.00
